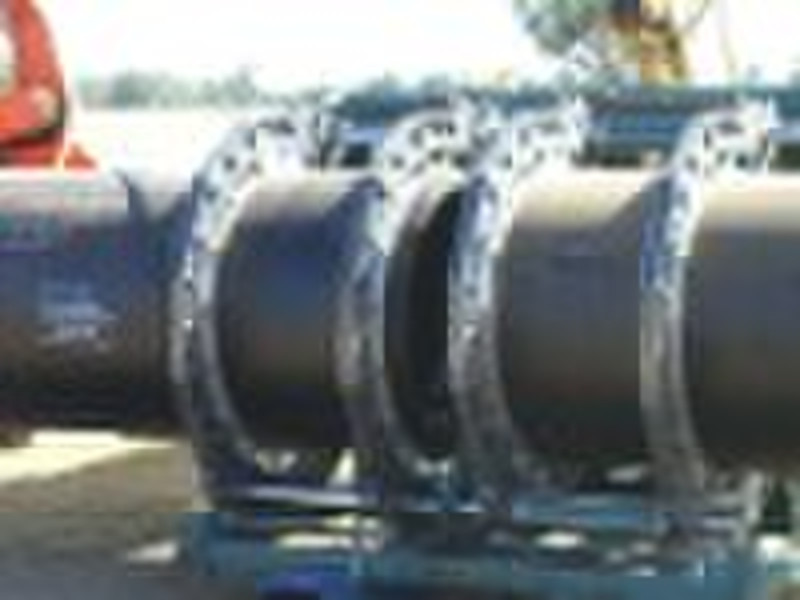

FM1200 Butt Fusion Machine

ItemFM-800FM-1000FM-1200Pipe RangeΦ800-Φ630Φ1000-Φ710Φ1200-Φ710Power Supply3-Phase 220V or 380V3-Phase 220V or 380V3-Phase 220V or 380VHeater Power12KW10KW13.6KWHydraulic Power2.2KW2.2KW2.2KWTotal Power14.2KW12.2KW15.8KWEnviron. Temp.-10°C 45°C-10°C 45°C-10°C 45°CHeater Temp. Rise20-30Min20-30Min20-30MinPressure Range0-8Mpa0-8Mpa0-8MpaHydraulic Surface5026mm26485mm26485mm2 1. Smart-design, light and easy operation facer drived by hydraulic to mill the pipe ends from pipe inside to outside. There is a facer support device on the base machine. 2. Equipped with crane to lift up the heater. 3. Hydraulic Unit are together with the base machine. 4. Heater coated with Teflon which guarantee the high quality fusion. Intelligence Temperature Controller on operation panel can control the temperature precisely. It can be placed in the storage shelf when it is free. 5. Storage Shelf with wheels equipped to store heater, easy to move the heater. 6. Operation Panel on the base machine back with clamp moving control, pressure release and facer operation button. Manometer, voltmeter, temperature controller emergency stopper, sockets for facer, heater and hydraulic unit are on the panel right side. 7. Base machine with 4 sets of clamp and different sizes inserts, 2 hydraulic cylinders. It can realize pipe to pipe and pipe to fitting welding easily.
